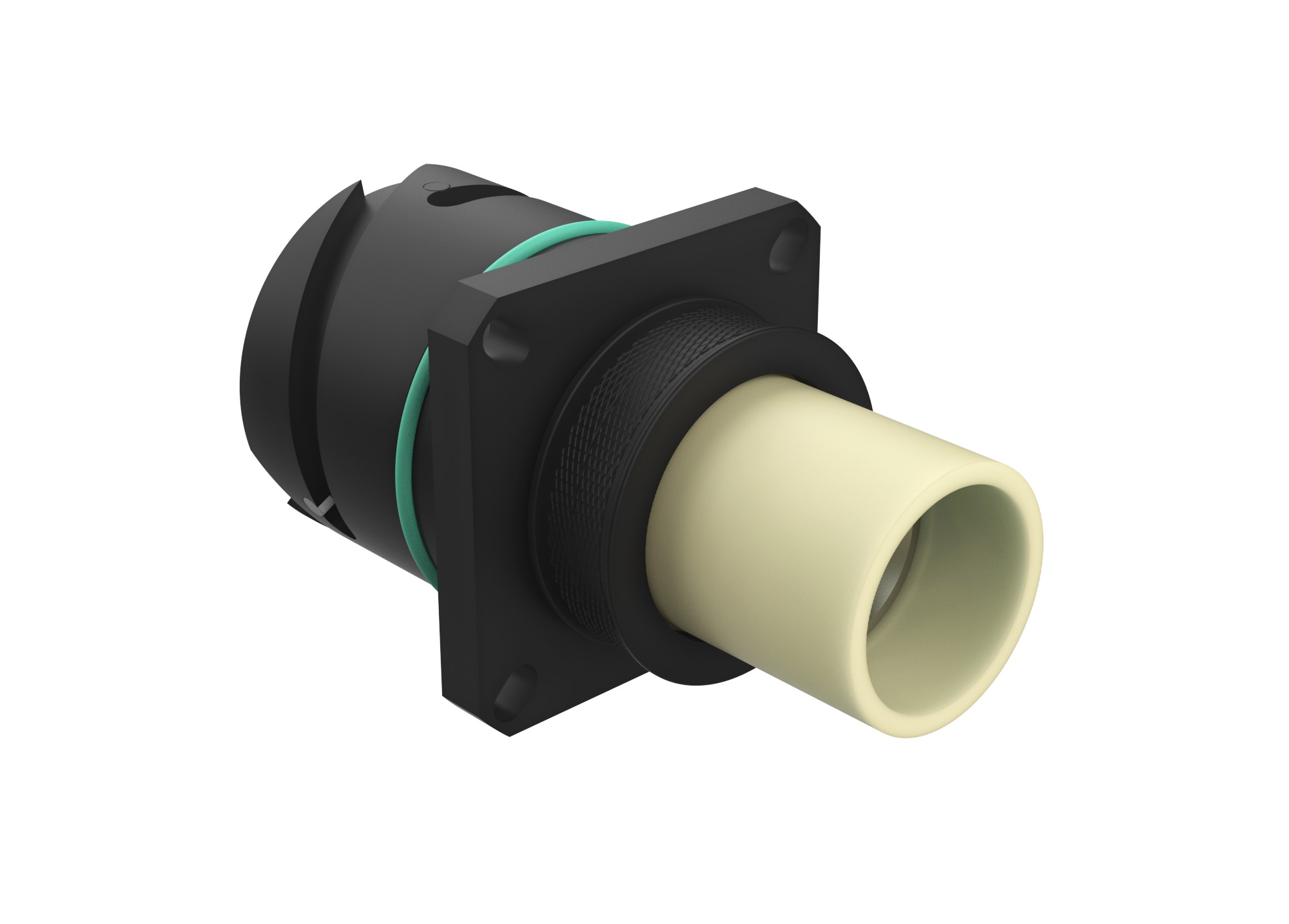

Reverse Bayonet Rhino 5015

All the benefits of Rhino 38999 in a reverse bayonet coupling method.

Features

  • IP2X finger protection on both plugs and receptacles
  • Standard Rhino single-pole power contacts and insulators housed within MIL-C-5015 reverse bayonet style shells

Applications

  • Military vehicles
  • Harsh environment applications

Technicals

  • Sealing (mated and unmated) IP69K, 1hr at 2 metres immersion and proof against high pressure steam jet cleaning
  • Salt spray resistance is plating dependent, eg 500hrs for Black Zinc Nickel
  • Shock and vibration in accordance with DEF-STAN 00-35 Iss 4 Ch2 01 test M1 Appendix A Figs A22 – High Level and A23 Low Level
  • Impact in accordance with EIA-364-42 Light Service Class
  • Fluid resistance as per MIL-DTL-38999L
  • IP2X finger protection in accordance with BS EN 60529 mechanical finger
  • RoHS compliant (unless Olive Drab Cadmium plate is specified)
  • Current rating up to 1000A
  • Shell to shell continuity < 2.50mΩ initially, in accordance with EIA-364-83
  • Shell to backshell continuity < 5.00mΩ initially, in accordance with EIA-364-83
  • Insulation resistance 5000MΩ
  • Working voltage:
    • Size 13 to 15: 500Vac RMS at sea level, 600Vdc at sea level,
    • Size 17 to 25: 875Vac RMS at sea level, 1238Vdc at sea level
  • Dielectric withstand voltage (EIA-364-2):
    • Size 13 to 15: At 1500Vac RMS, 2mA max leakage current
    • Size 17 to 25: At 2625Vac RMS, 2mA max leakage current
  • EMI 360˚ screening facilitated with straight or 90˚ EMC backshell
  • Mating durability 500 cycles minimum, contacts rated to 20,000 cycles
  • Non-magnetic
  • Crimp, lug or bus-bar termination
  • Reverse bayonet mating in MIL-C-5015 style
  • Straight, right angle or locking ring only backshell options
  • Panel cutouts as per MIL-DTL-38999L for rear mounting receptacles only
