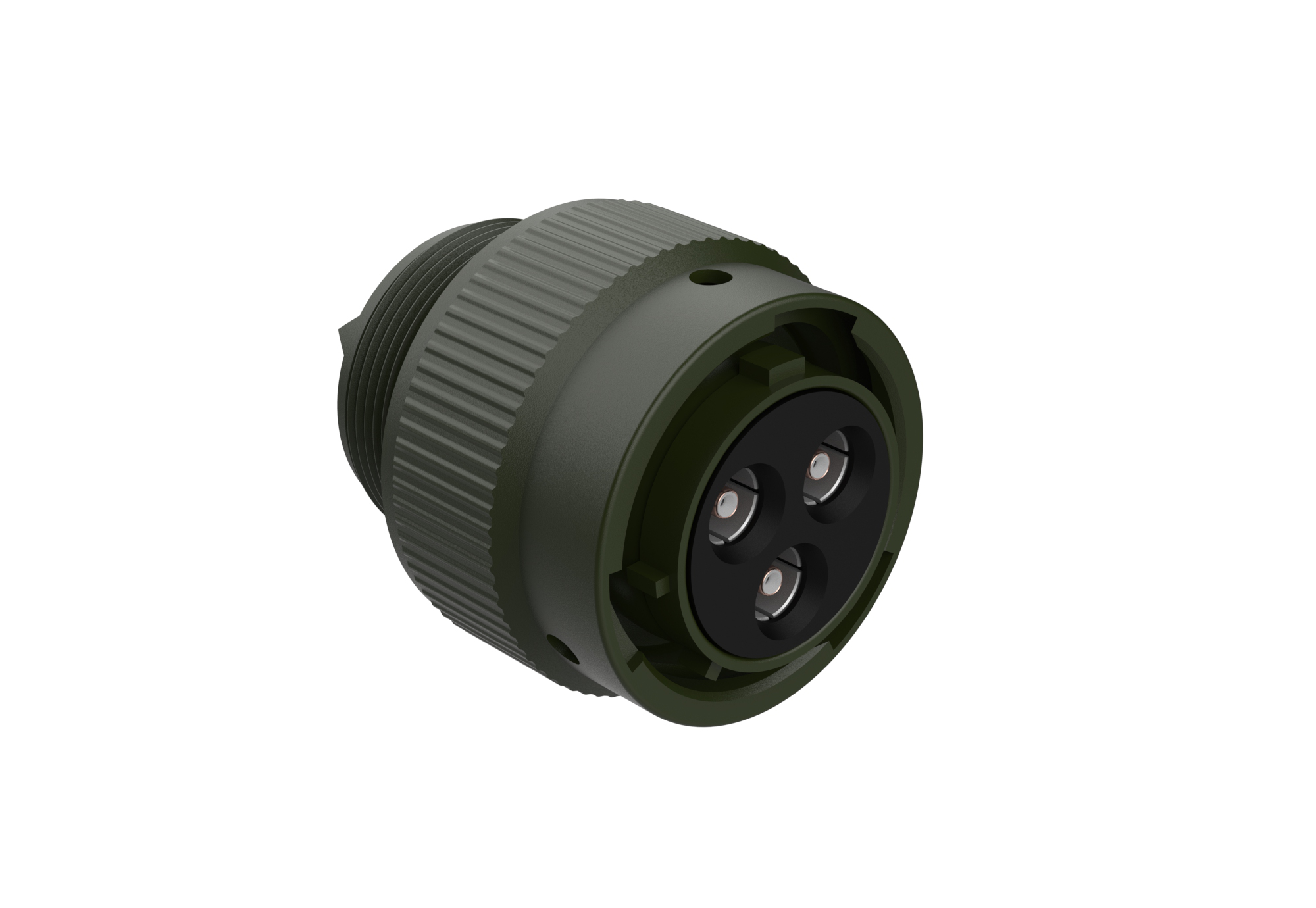

711 Multi Way

• Multi contact data bus connectors
• Makes use of the same tooling and termination method as 711 Single-Way connectors
• Up to 12 contacts
• Operates in temperatures from -55°C to 150°C
• PCB mounted versions available
• Qualified to PAN 6486 and JN1033
• BUS and STUB Termination Contacts available
• Plug connectors are always supplied with socket contacts and receptacles with pins
• Manufactured from Aluminium Alloy with Cadmium Olive Drab plating; also available with RoHS compliant Electroless Nickel finish
• Uses 602GB series accessories

• Ideal for use with video transmission systems
• Termination of screened twisted pair cable

• Utilises MIL-STD-1553B cable
• Designed to customer requirements
• Available with in line couplers
• 711 or 38999 connectors can be used
• Common triaxial crimp contacts for both single and multi-way

You can download all the information you need below.
