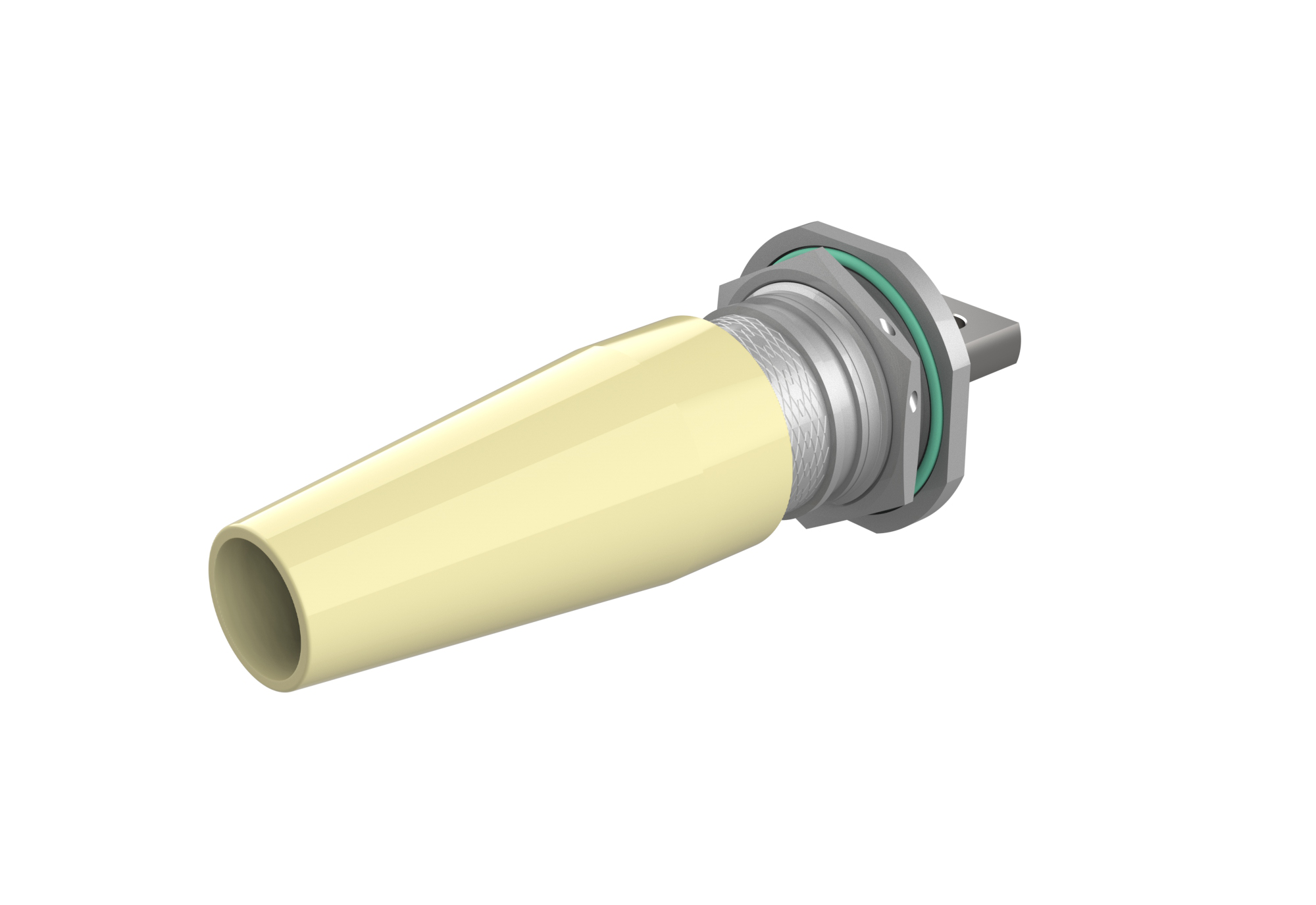

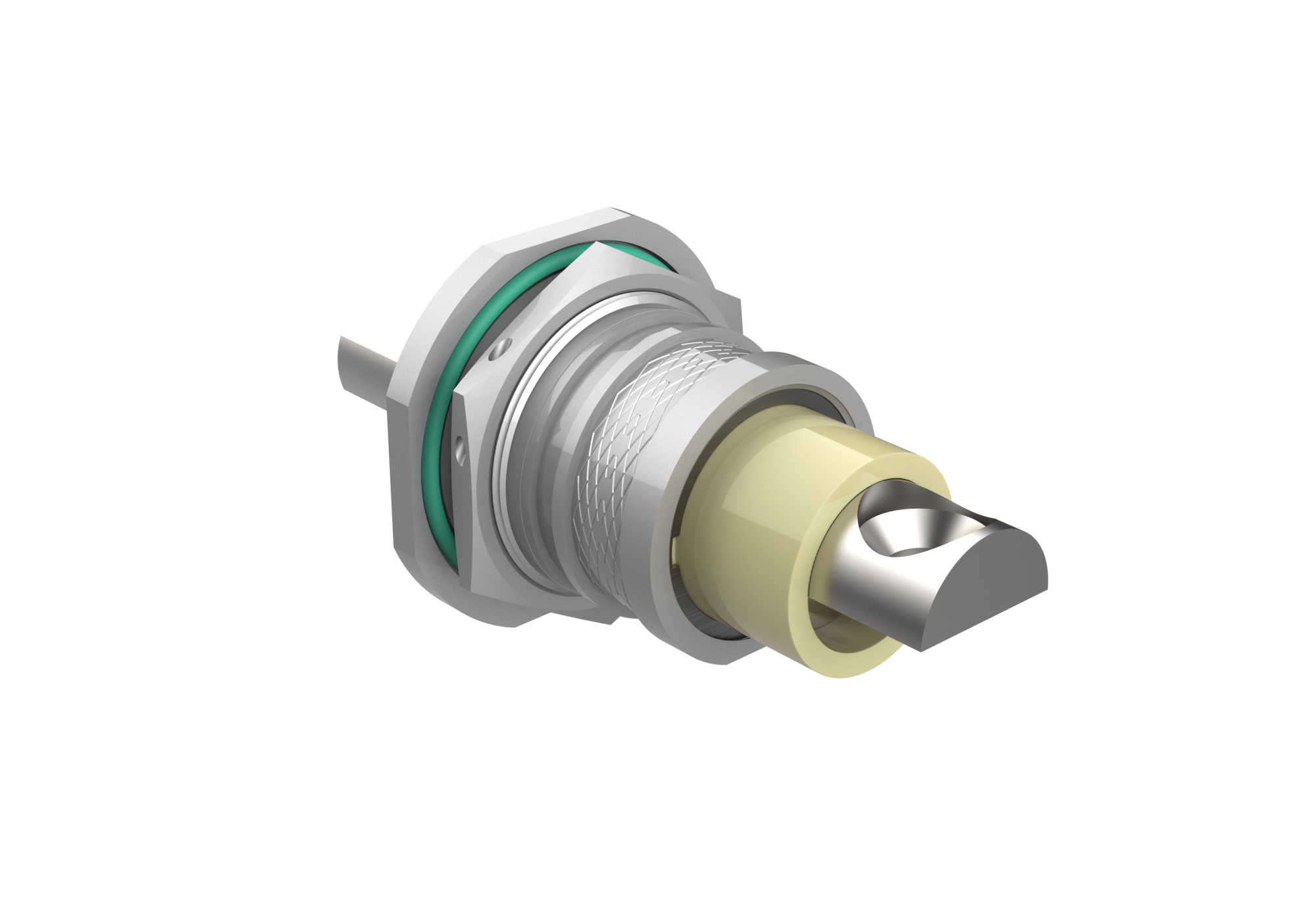

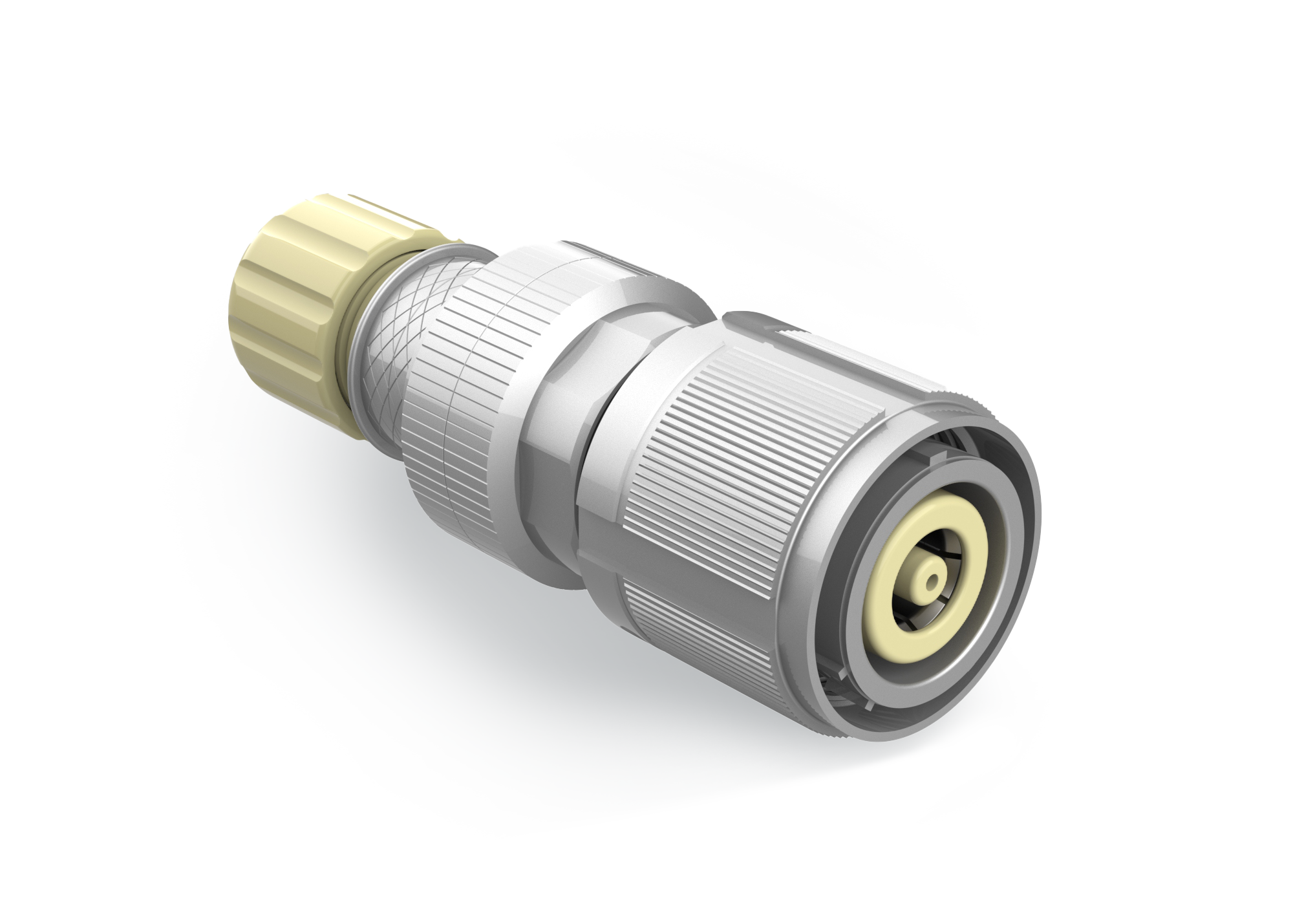

Raptor Feedthrough
Raptor feedthrough enables semi permanent connections for High Voltage and High Current systems in high altitude E-Flight and E-VTOL applications.
Features
- Feedthrough option for semi-permanent installations
- Termination system for screened high voltage cables
- Jam Nut or Square Flange options
- Two shell sizes smaller than comparable Raptor Connector
- Optimised insulation geometry & materials for High Voltage electric fields
- Ideal for liquid cooled motors, batteries and inverters
- Designed for increased operating voltages at aircraft altitudes
Applications
- E-Flight
- E-VTOL
- Hybrid Aircraft
- High altitude motors, inverters and engines
Technicals
- AC (rms) DWV @ sea level 7.5 KV
- DC Operating Voltage @ 35,000 ft 880V
- AC (rms) Operating Voltage @ 35,000 ft 1.75 KV
- Partial Discharge IV @ 35,000 ft, 21°C 2.0KV AC (rms)
- Maximum Temperature 150°C (ambient plus electrical heating)
- Material & Finish RoHS Aluminium Electroless Nickel Plated
