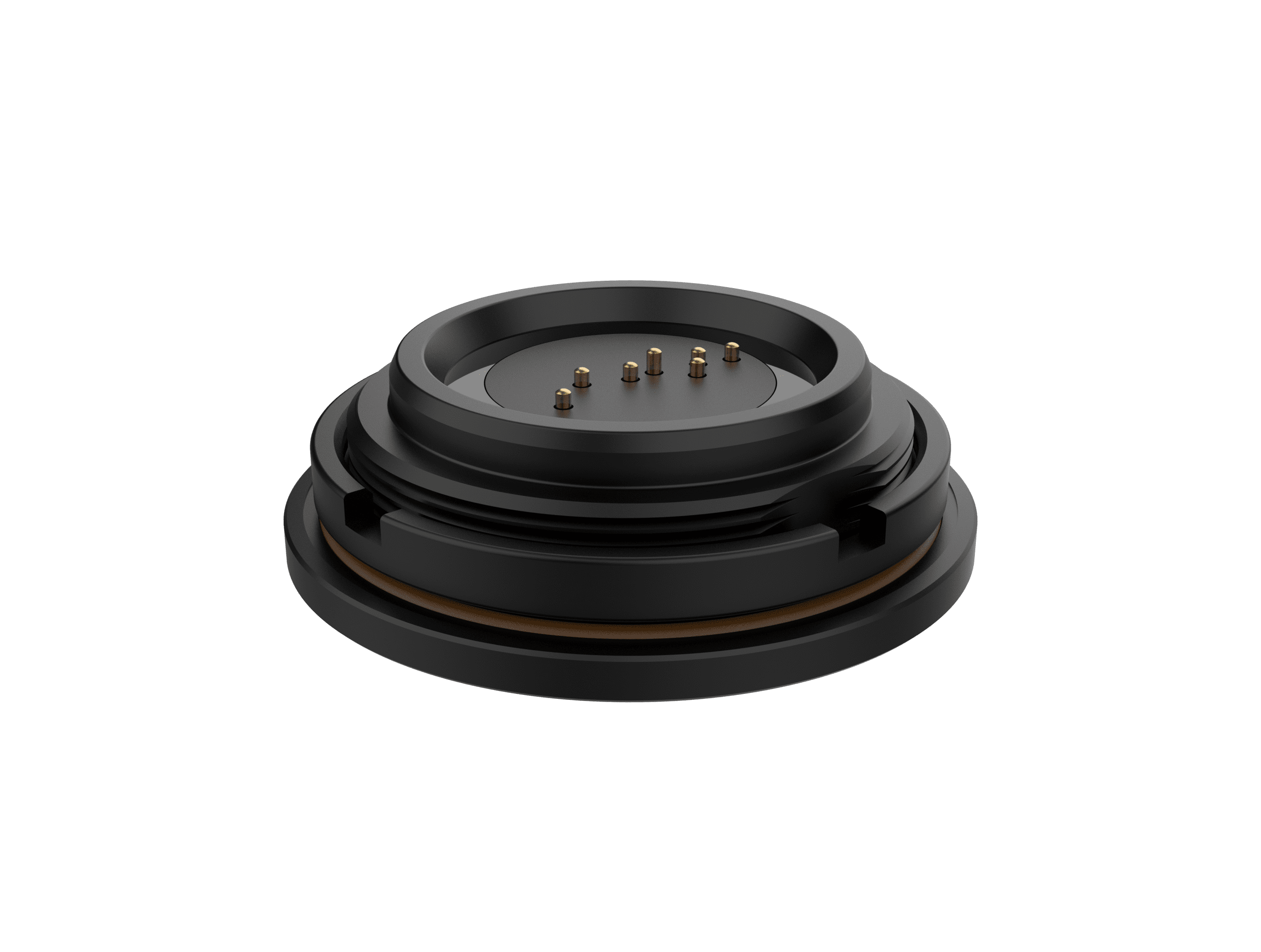

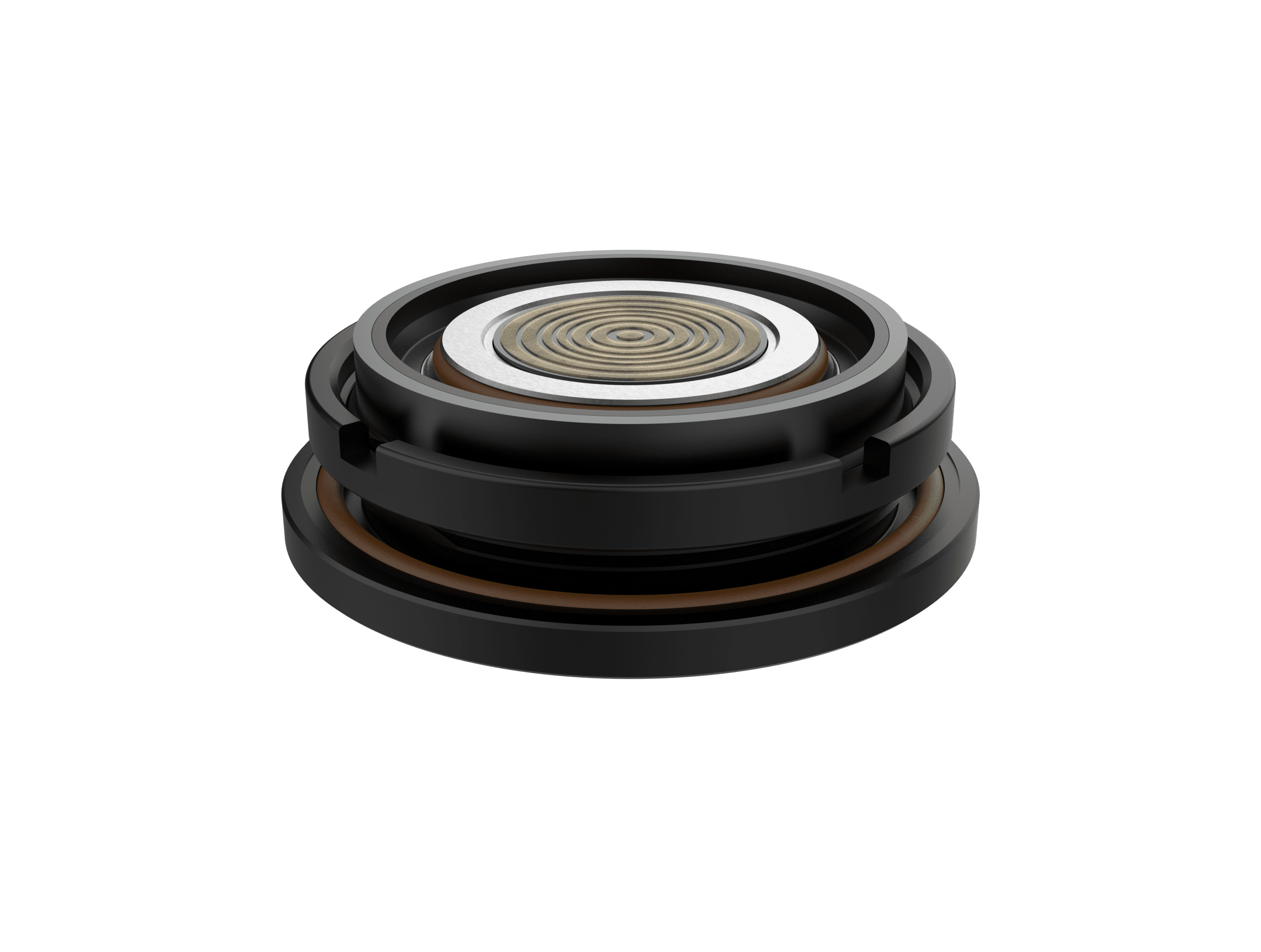

Stingray 7 Panel Mount

• Compact, panel-mounted metal-shelled design for equipment integration
• Enables rapid 360-degree connect/disconnect
• Non-keyed coupling with no moving parts, reducing wear and maintenance
• Withstands moisture, dust, dirt and harsh operating conditions
• EMI shielding to support mixed power and date transmission
• 5A current rating with support for high-speed data(e.g. USB 2.0)
• Compatible with cable and device-side Stingray interfaces

• Equipment-to-equipment interfaces (e.g. docking, charging, data transfer)
• Integration into portable or vehicle-mounted systems
• Body-worn or mission equipment requiring quick-release capability
• Situations where snagging or forced disconnection is a risk

• 5A per contact (5 contacts)
• 8–36v voltage rating
• USB 2.0 data protocol
• <20mΩ contact resistance
• <20mΩ shell-to-shell continuity
• 100MΩ @ 100VDC
• >10,000 mating durability
• 43 N separation force (axial)
• 7 N separation force (peel)
• -55ºC/+85ºC operating temperature
• -55ºC/+125ºC storage temperature
• RoHS/REACH compliant
